Clarity in every connection.
AI-assisted structural steel drawing review. Compare details, dimensions, and member references with their source information.
01 / A DRAWING QUESTION
One member. Two recorded sizes.
Example only. A discrepancy is a question to investigate; professional judgment remains essential.
02 / THE PLATFORM

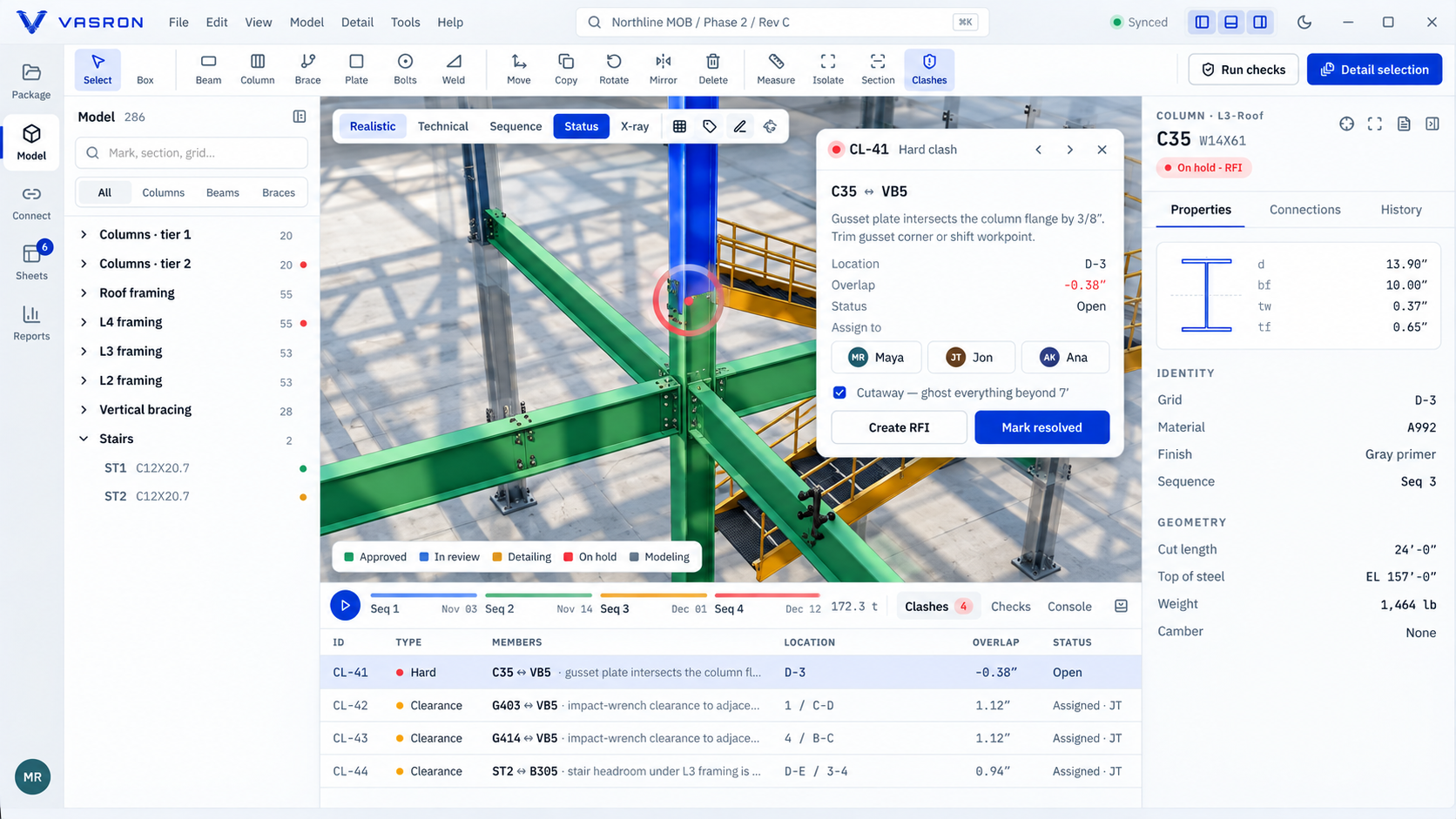

Every question, located in the structure.
Three illustrative findings from a sample frame, each paired with the source information it compares.
FROM DRAWING TO STRUCTUREWHAT A QUESTION KEEPS
Every question keeps its drawing context.
A finding is useful when you can see where it came from. Carry its source, related reference, observed difference, and next step together through review.
- 01Source
The sheet, detail, and revision where the question starts.
- 02Related reference
The note, schedule entry, or dimension it is compared with.
- 03Difference
What does not agree, stated plainly, and anything missing.
- 04Next step
Who decides, and what happens once they do.
Qualified professionals make engineering decisions and approvals.
04 / MADE FOR REAL WORK
On paper.
In the shop.
Out in the field.
Every drawing is part of something that will be built. Bring unresolved details into the conversation before they take shape in steel.
Built around your team05 / THE NEXT STEP
Follow a finding through review.
Inspect the source, consider the evidence, and coordinate a decision with your team.
Discuss your drawing review.
Tell us about your team and the drawings you work with.
